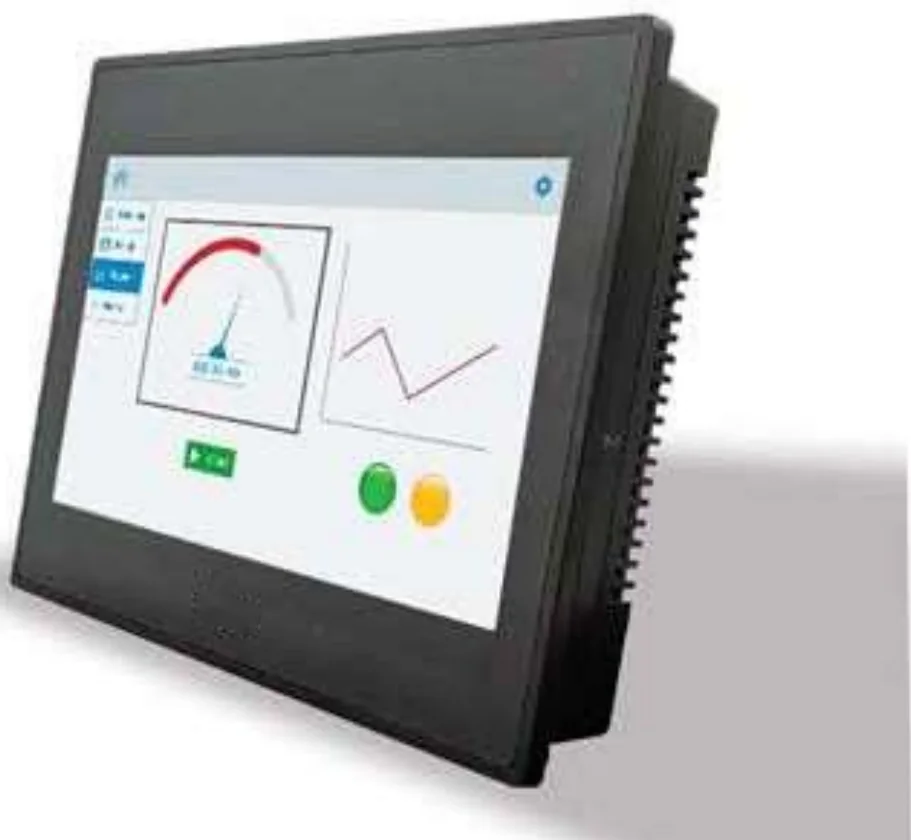

4.3 and 7 inch, for the machine that needs a screen and not a computer.
Colour TFT with resistive touch. Trends, alarms, data logging, recipes and a built-in web server.
- RS232 and RS485 serial; Ethernet on the TN models
- USB Type-C for programming, upload and download; one USB host
- IEC 61131-3 programming environment
- IP66 protection for front-panel mounting
| Part number | Screen | Serial | Ethernet | USB |
|---|---|---|---|---|
| FP2043T-V2 | 4.3 in TFT | 1 port (RS232 and RS485) | No | Type-C + host |
| FP2043TN-V2 | 4.3 in TFT | 1 port (RS232 and RS485) | Yes | Type-C + host |
| FP2070T-V2 | 7 in TFT | 2 ports (RS232/RS485) | No | Type-C + host |
| FP2070TN-V2 | 7 in TFT | 2 ports (RS232/RS485) | Yes | Type-C + host |
Approvals: CE, UL Listed Class I Division 2, RoHS, IP66 front.

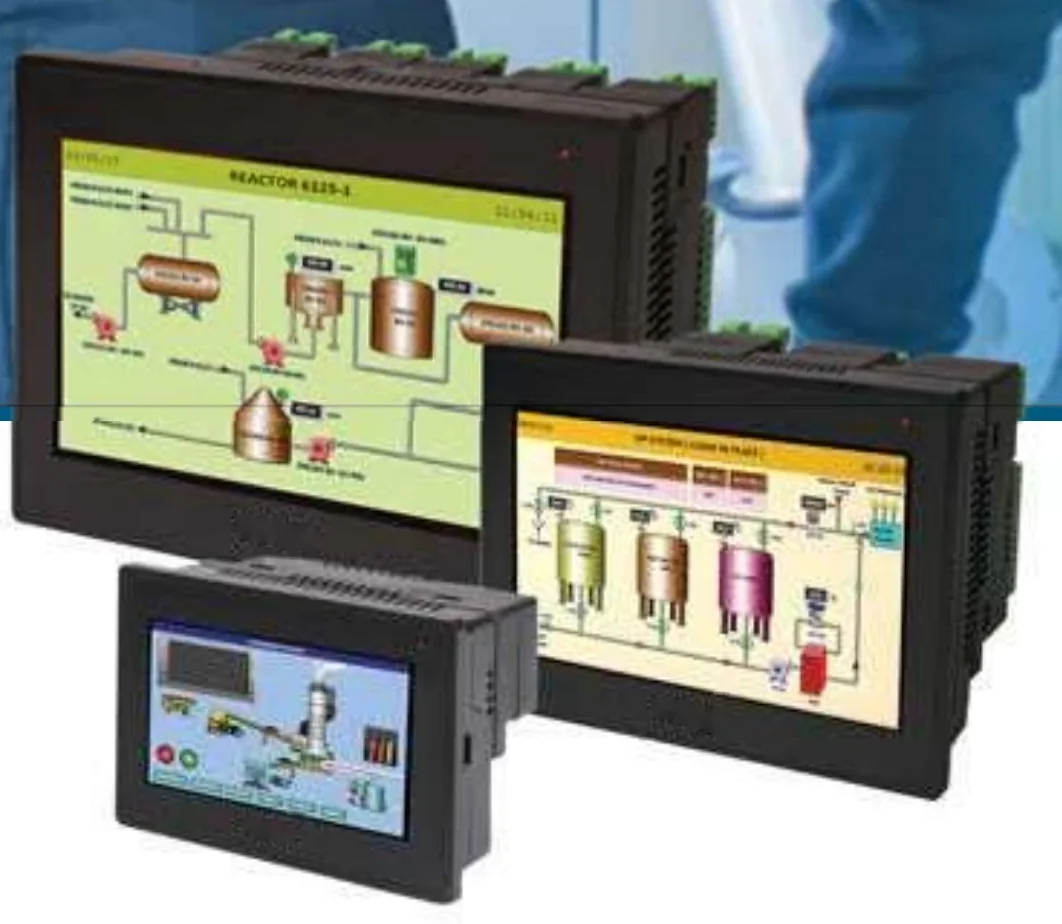

4.3 to 15 inch, with the connectivity built in.
For complex applications: VNC server, email, FTP host and client, MQTT and web server on the panel itself.
- 4 GB eMMC and 512 MB RAM; real-time clock; microSDHC slot
- 10/100 Ethernet, RS232/RS485 serial, USB Type-C and USB host
- Trends, alarms, data logging and recipe management
- IEC 61131-3 programming environment; IP66 front
| Part number | Screen | Serial | Ethernet | Storage |
|---|---|---|---|---|
| FP4043TN | 4.3 in resistive | 1 x RS232/RS485 | 1 x 10/100 | 4 GB + microSDHC |
| FP4070TN | 7 in resistive | 2 x RS232/RS485 | 1 x 10/100 | 4 GB + microSDHC |
| FP4101TN | 10.1 in resistive | 2 x RS232/RS485 | 1 x 10/100 | 4 GB + microSDHC |
| FP4121TN | 12.1 in resistive | 2 x RS232/RS485 | 1 x 10/100 | 4 GB + microSDHC |
| FP4151TN-V2 | 15 in resistive | 2 x RS232/RS485 | 1 x 10/100 | 4 GB + microSDHC |
Approvals: CE, UL Listed Class I Division 2, RoHS, IP66 front.

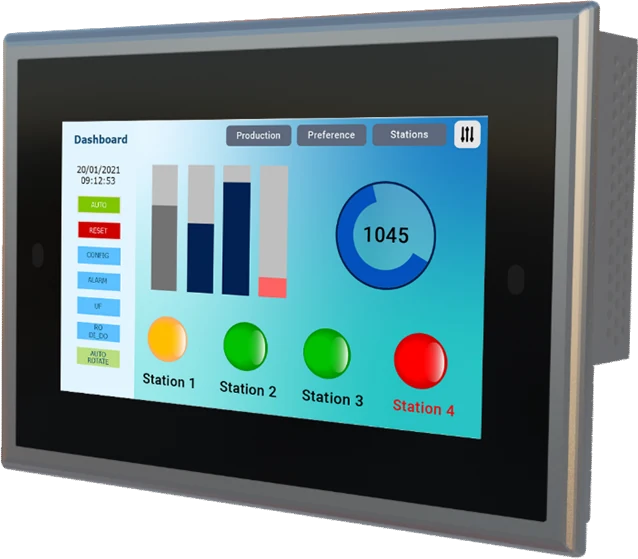

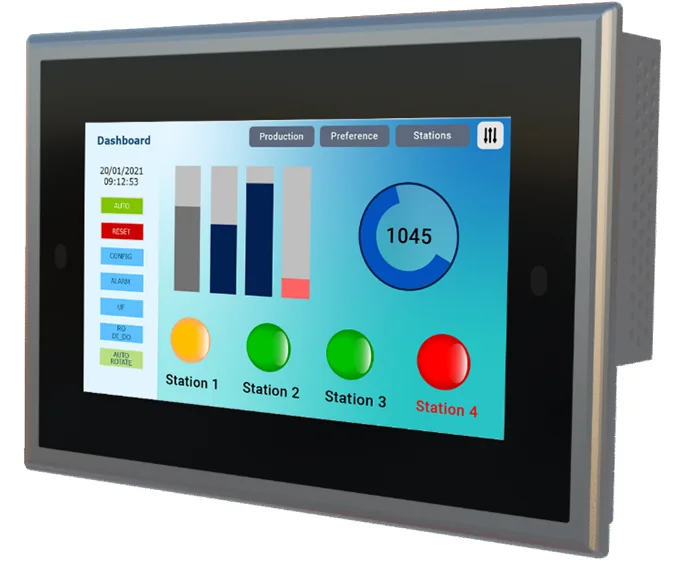

Metal housing, bonded glass, readable in direct sun.
Capacitive touch behind optically bonded glass at 1,000 nits, a quad-core Cortex-A53 at 1.4 GHz, and a PLC function built in. Made for outdoor and washdown-adjacent machines.
- Operating temperature -20 to 70 °C; IP66 front
- Two Ethernet ports, one of them gigabit; two RS232/RS485 serial ports
- FTP, HTTPS, MQTT and email; data logging to microSDHC
- Ladder, instruction list, structured text, SFC and function block diagram
| Part number | Screen | Memory | Ethernet | USB |
|---|---|---|---|---|
| FP6070CN-M | 7 in, 1024 x 600, PCAP | 8 GB eMMC, 1 GB RAM | 10/100 + 10/100/1000 | Type-C + 2 host |
| FP6101CN-M | 10.1 in, 1024 x 600, PCAP | 8 GB eMMC, 1 GB RAM | 10/100 + 10/100/1000 | Type-C + 2 host |
| FP6121CN-M | 12.1 in XGA, PCAP | 8 GB eMMC, 1 GB RAM | 10/100 + 10/100/1000 | Type-C + 2 host |
| FP6151CN-M | 15.1 in XGA, PCAP | 8 GB eMMC, 1 GB RAM | 10/100 + 10/100/1000 | Type-C + 2 host |
| FP7070CN-M | 7 in, 1024 x 600, capacitive | 4 GB flash, 1 GB RAM | 10/100 + 10/100/1000 | Type-C + 2 host |
| FP7101CN-M | 10.1 in, 1280 x 800, capacitive | 4 GB flash, 1 GB RAM | 10/100 + 10/100/1000 | Type-C + 2 host |
Approvals: FP7 metal-housing models: CE, UL Class I Division 2, IP66, RoHS, REACH. FP6 models: IP66 front; ask for the current listing.

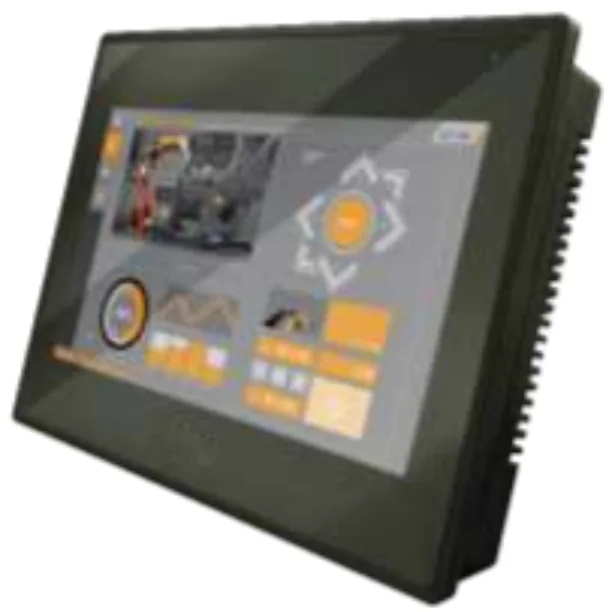

An HTML5 browser in an industrial bezel.
Thin clients for machines whose interface is already a web application. Point the panel at any web server and it runs.
- 4.3, 7 and 10.1 inch
- Chromium-based HTML5 browser on the Plus and capacitive models; a microbrowser on the Lite
- Capacitive, high-brightness and metal-housing options
- IP66 protection for front-panel mounting
| Part number | Screen | Browser | Housing |
|---|---|---|---|
| WP2043TN Lite / WP2070TN Lite / WP2101TN Lite | 4.3 / 7 / 10.1 in | Microbrowser thin client | Plastic |
| WP6043TN Plus / WP6070TN Plus / WP6101TN Plus | 4.3 / 7 / 10.1 in | Chromium, HTML5 | Plastic |
| WP7043CN / WP7070CN / WP7101CN | 4.3 / 7 / 10.1 in capacitive | Chromium, HTML5 | Plastic |
| WP7070CN-M / WP7101CN-M | 7 / 10.1 in PCAP | Chromium, HTML5 | Metal |
Approvals: Lite: CE, UL Class I Division 2, IP66. Plus: CE, UL, RoHS, IP66. Capacitive models: IP66 front; ask for the current listing.
Ask for the position on any part number.
Stock is held in Mokena, Illinois. Send Russ the part number and the quantity and he will tell you what is on the shelf and the lead time on the rest, the same day.
