The small controller, for the machine with a fixed job.

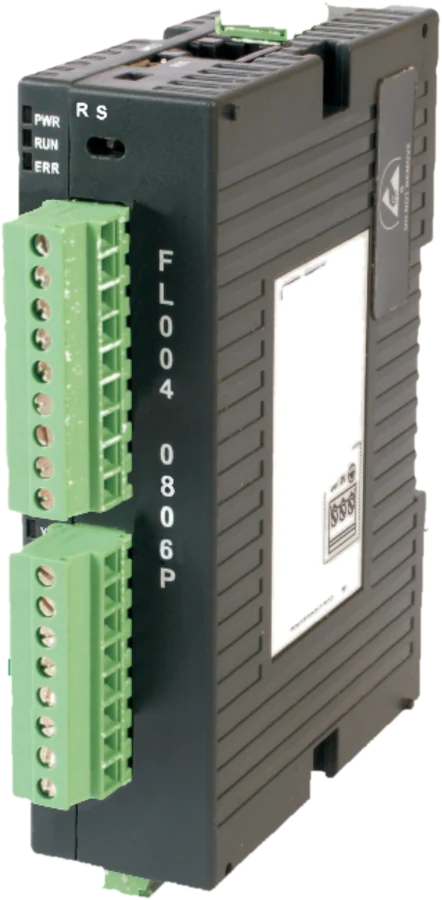

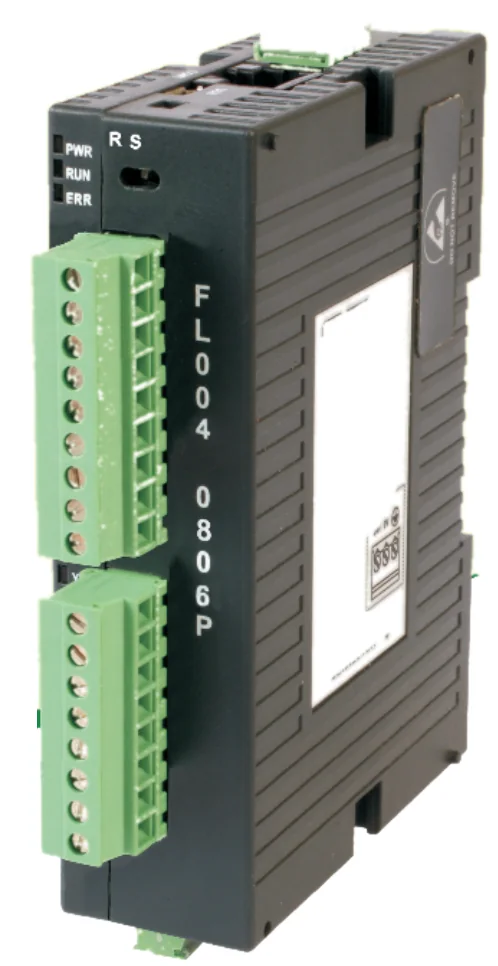

DIN-rail mounted, 32-bit RISC processor, relay or transistor outputs, expandable to 8 modules.
- 8 bi-directional digital inputs: 2 single-phase high-speed counters to 25 kHz, or 8 to 10 kHz, or quadrature to 10 kHz
- 6 outputs, relay or NPN transistor; 3 high-speed outputs to 10 kHz on the transistor model
- 2 serial ports (RS232 and RS485) and USB Type-C
- IEC 61131-3 programming environment
| Part number | Inputs | Outputs | Ports | Expansion |
|---|---|---|---|---|
| FL004-0806N-V2 | 8 DI, high-speed capable | 6 NPN transistor | 2 serial, USB Type-C | Up to 8 modules |
| FL004-0806R-V2 | 8 DI, high-speed capable | 6 relay | 2 serial, USB Type-C | Up to 8 modules |
Approvals: CE. Ask for the current UL listing.
Play: The eco PLC, up close
The eco PLC, up close
A walkthrough of the FL004: the controller itself, its I/O and ports, and the machines it is sized for.
200 kHz counting, Ethernet when you need it, 16 expansion modules.

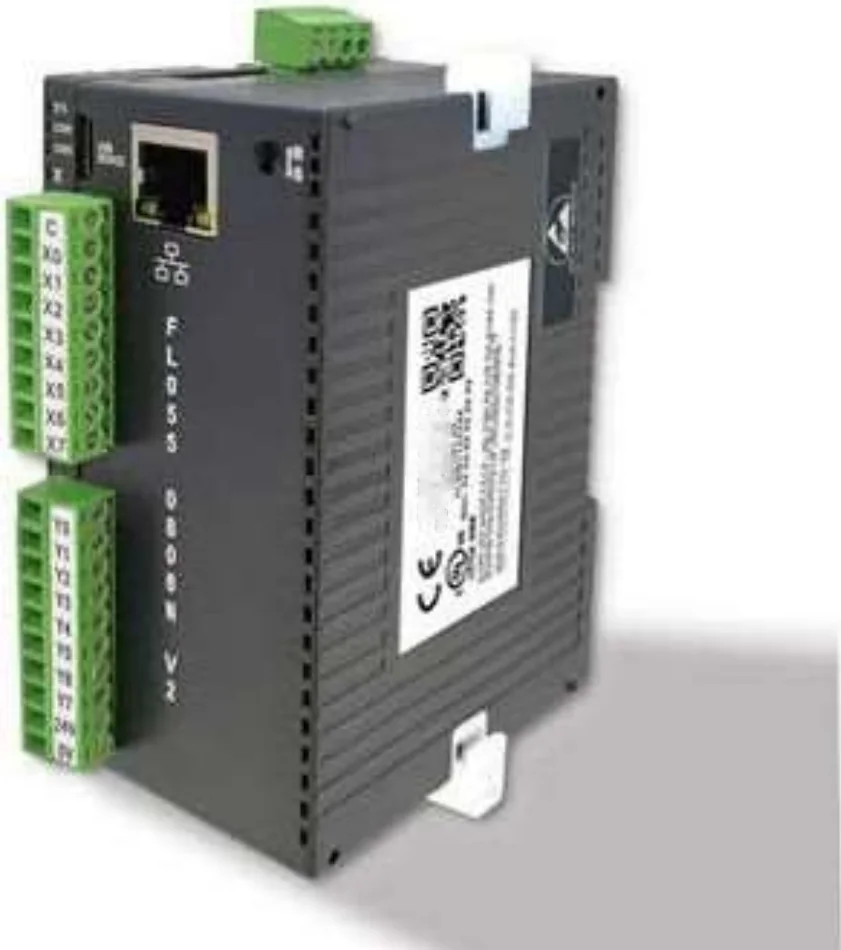

The same DIN-rail form with faster I/O: four single-phase counters or quadrature to 200 kHz, and four high-speed outputs to 200 kHz.
- 8 bi-directional digital inputs; 8 NPN or 6 relay outputs
- 2 serial ports (RS232 and RS485) and USB Type-C; Ethernet on the FL055
- Expandable to 16 modules
- IEC 61131-3: ladder, function block, structured text, SFC, instruction list
| Part number | Inputs | Outputs | Ethernet | Expansion |
|---|---|---|---|---|
| FL005-0808N-V2 | 8 DI, 200 kHz capable | 8 NPN (4 to 200 kHz) | No | Up to 16 modules |
| FL005-0806R-V2 | 8 DI, 200 kHz capable | 6 relay | No | Up to 16 modules |
| FL055-0808N-V2 | 8 DI, 200 kHz capable | 8 NPN (4 to 200 kHz) | Yes | Up to 16 modules |
| FL055-0806R-V2 | 8 DI, 200 kHz capable | 6 relay | Yes | Up to 16 modules |
Approvals: FL055: CE, UL Class I Division 2. FL005: ask for the current listing.
Digital, analog and load cell, on the PLC's own bus.

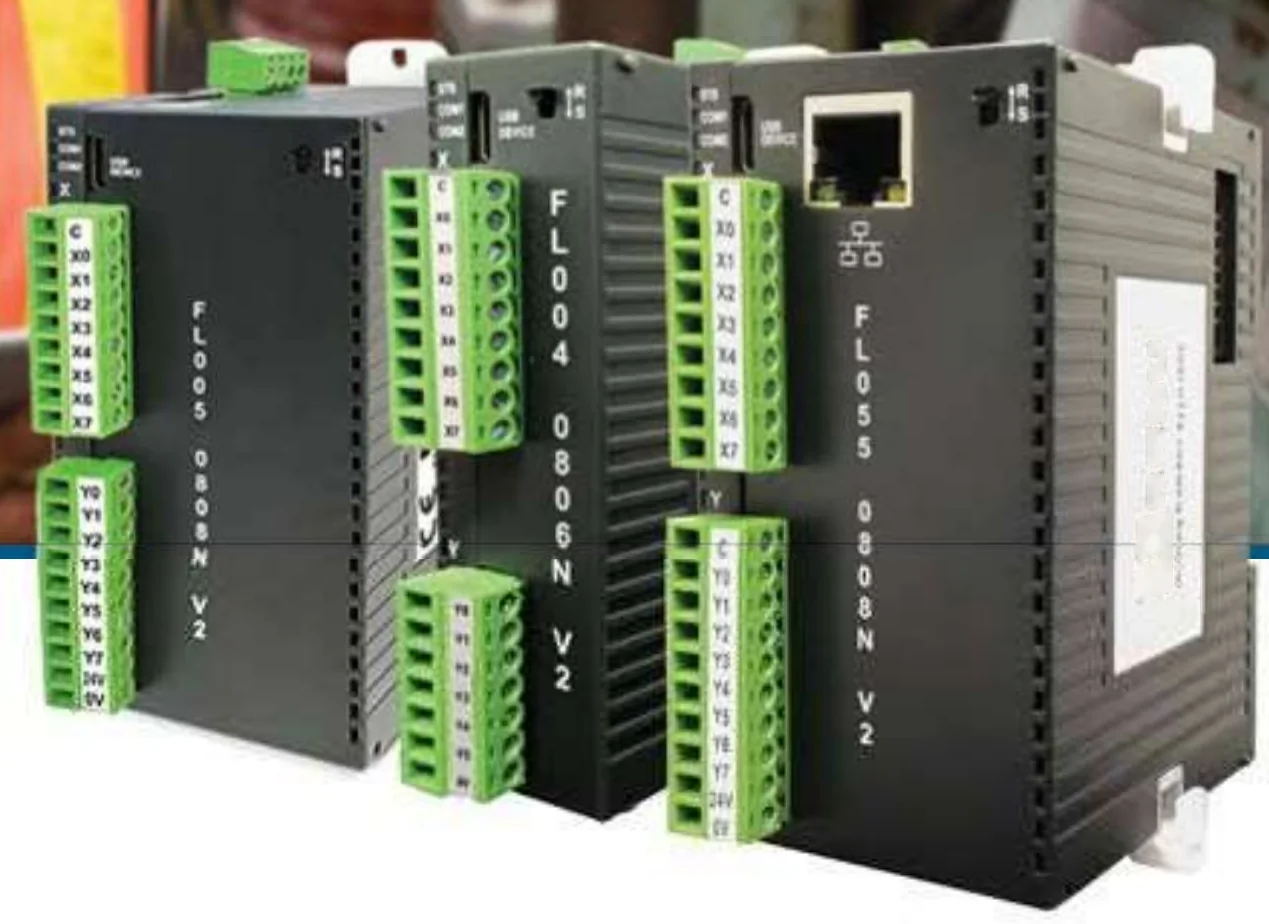

Snap-on modules for the eco and standard PLCs.
- Digital: 8 in, 8 out (NPN or relay), or 8 in and 8 out
- Analog: 4 inputs at 16 bit (0 to 10 V, 4 to 20 mA, 0 to 20 mA) and 2 outputs at 12 bit
- Load cell: 2 channels, 24-bit, up to 500 conversions a second, 4- or 6-wire strain gauge, one digital output per channel outside the scan
| Part number | Inputs | Outputs |
|---|---|---|
| FLD0800-V2 | 8 digital | None |
| FLD0008N-V2 | None | 8 NPN |
| FLD0008R-V2 | None | 8 relay |
| FLD0808N-V2 | 8 digital | 8 NPN |
| FLD0808R-V2 | 8 digital | 8 relay |
| FLA0402L-V2 | 4 analog, 16 bit | 2 analog, 12 bit |
| FLAD0202P-SO | 2 load cell channels, 24 bit | 2 digital |
Approvals: Load cell module: CE, cUL Class I Division 2, RoHS. Others: ask for the current listing.
One part number for the screen, the controller and the I/O.
A basic or advanced HMI with the PLC function inside and the I/O plugged into the back, or built in. No separate controller, one program, one cutout.
- Pluggable I/O modules: 1 on the 4.3 inch, 3 on the 7 inch, 5 on the 10.1 inch
- Built-in I/O models add 4 high-speed inputs to 200 kHz, RTD and thermocouple inputs, and analog outputs
- IP66 front; IEC 61131-3 programming environment
| Part number | Screen | I/O | Ethernet |
|---|---|---|---|
| FP2043T-E / FP2043TN-E | 4.3 in | 1 pluggable module | TN model |
| FP2070T-E / FP2070TN-E | 7 in | 3 pluggable modules | TN model |
| FP4043TN-E | 4.3 in | 1 pluggable module | Yes |
| FP4070TN-E | 7 in | 3 pluggable modules | Yes |
| FP4101TN-E | 10.1 in | 5 pluggable modules | Yes |
| FP2043TN-LE1208N-A0402U | 4.3 in | 12 DI, 8 NPN out, 4 AI (2 V/I, 2 RTD/TC), 2 AO, + 1 module | Yes |
| FP2043TN-LE1208P-A0402U | 4.3 in | 12 DI, 8 PNP out, 4 AI (2 V/I, 2 RTD/TC), 2 AO, + 1 module | Yes |
| FP2070TN-LE2016RP-A0402U | 7 in | 20 DI, 16 out (12 relay, 4 PNP), 4 AI, 2 AO, + 3 modules | Yes |
Approvals: CE, UL Class I Division 2, IP66 front; RoHS on the basic series.
Ask for the position on any part number.
Stock is held in Mokena, Illinois. Send Russ the part number and the quantity and he will tell you what is on the shelf and the lead time on the rest, the same day.
