Field I/O, Modbus RTU
Remote points on two wires, configured with switches.
Compact DIN-rail modules that expand any Modbus master. Address, baud rate and parity are set on DIP switches; the digital modules need no configuration software at all.
- 2-wire RS485 on a pluggable terminal block
- An LED for every input and output, plus power and communication
- Relay, NPN and PNP output versions
- A 3-phase energy module measures voltage, current, frequency and power, with 4 DI and 4 DO
| Part number | Points |
|---|---|
| FIOA-0800-L-B | 8 analog inputs, 0 to 10 V or 4 to 20 mA, 12 bit |
| FIOA-0402-U-B / FIOA-0402-U-16-B | 4 universal analog inputs (V, mA, RTD, thermocouple), 2 analog outputs; 12 or 16 bit |
| FL001D-1600-V3 | 16 digital inputs |
| FL001D-0008R-V3 | 8 relay outputs |
| FL001D-0016N-V3 / -0016P-V3 / -0016R-V3 | 16 outputs: NPN, PNP or relay |
| FL001D-0404N-V3 / -0404P-V3 / -0404R-V3 | 4 inputs, 4 outputs: NPN, PNP or relay |

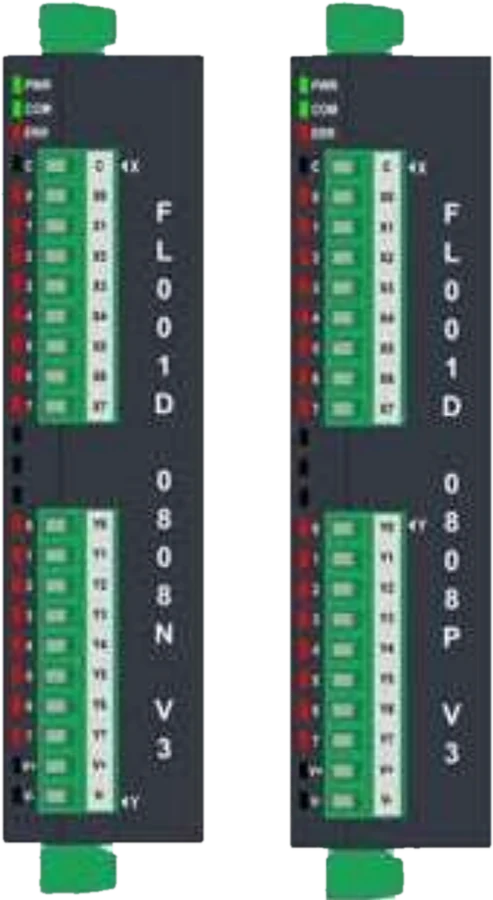

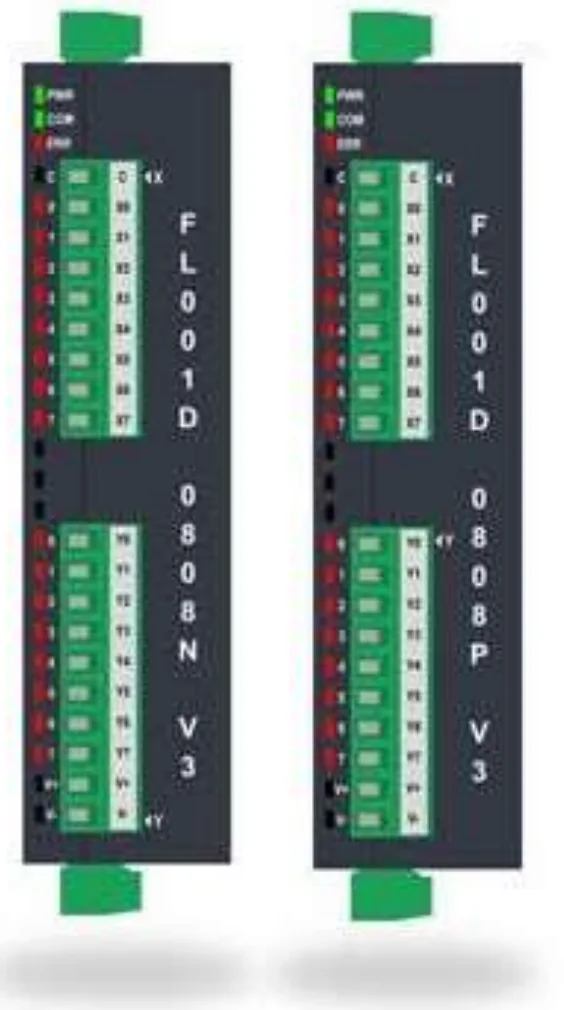

| FL001D-0808N-V3 / -0808P-V3 / -0808R-V3 | 8 inputs, 8 outputs: NPN, PNP or relay |
Approvals: CE, with UL as an option. Say so when you order.

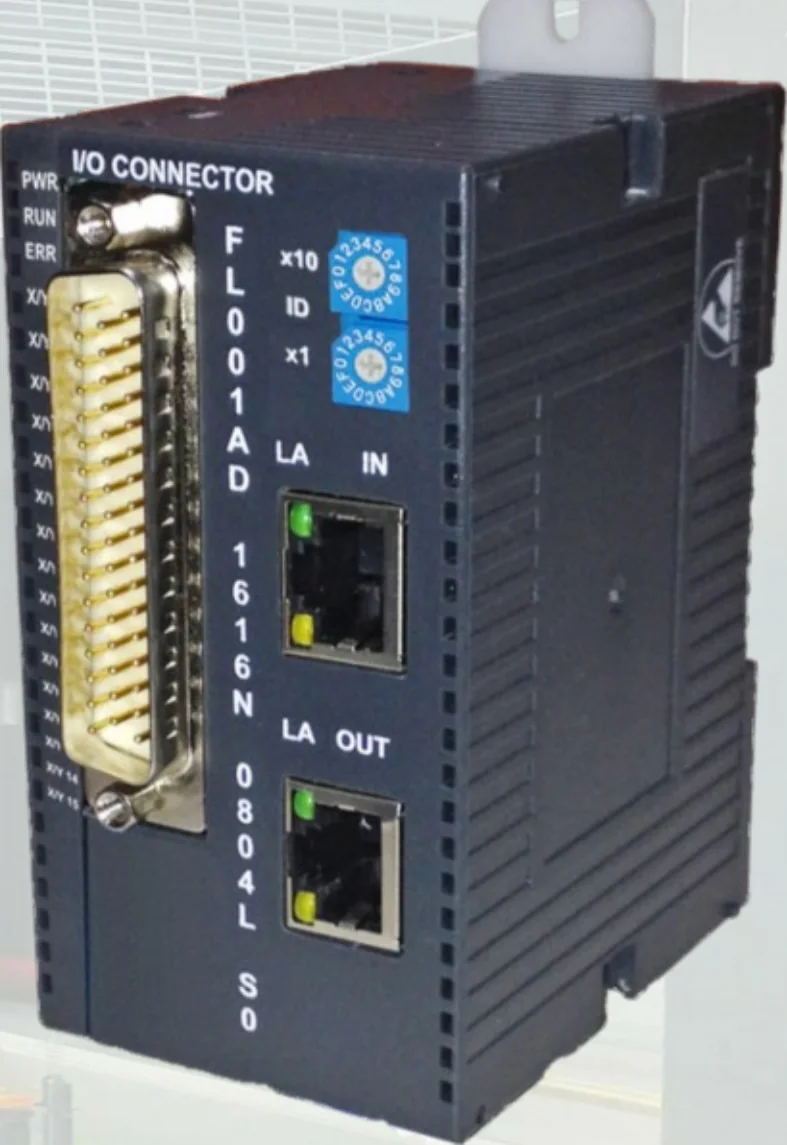

EtherCAT remote I/O
Sixteen configurable digital points and twelve analog, in 50 mm.
A DIN-rail EtherCAT block with in and out ports, for machines already on an EtherCAT master.
- 16 digital points at 24 VDC, each individually configurable as input or NPN output at 200 mA
- 8 linear analog inputs, 12 bit, -10 to +10 VDC; 4 analog outputs
- Bicolour LED per digital point: green for input, red for output
- Isolated 24 VDC supply; 50 pin D-sub for I/O and power; 50 x 100 x 70 mm
Approvals: Ask for the current listing.
Stock and lead time
Ask for the position on any part number.
Stock is held in Mokena, Illinois. Send Russ the part number and the quantity and he will tell you what is on the shelf and the lead time on the rest, the same day.
